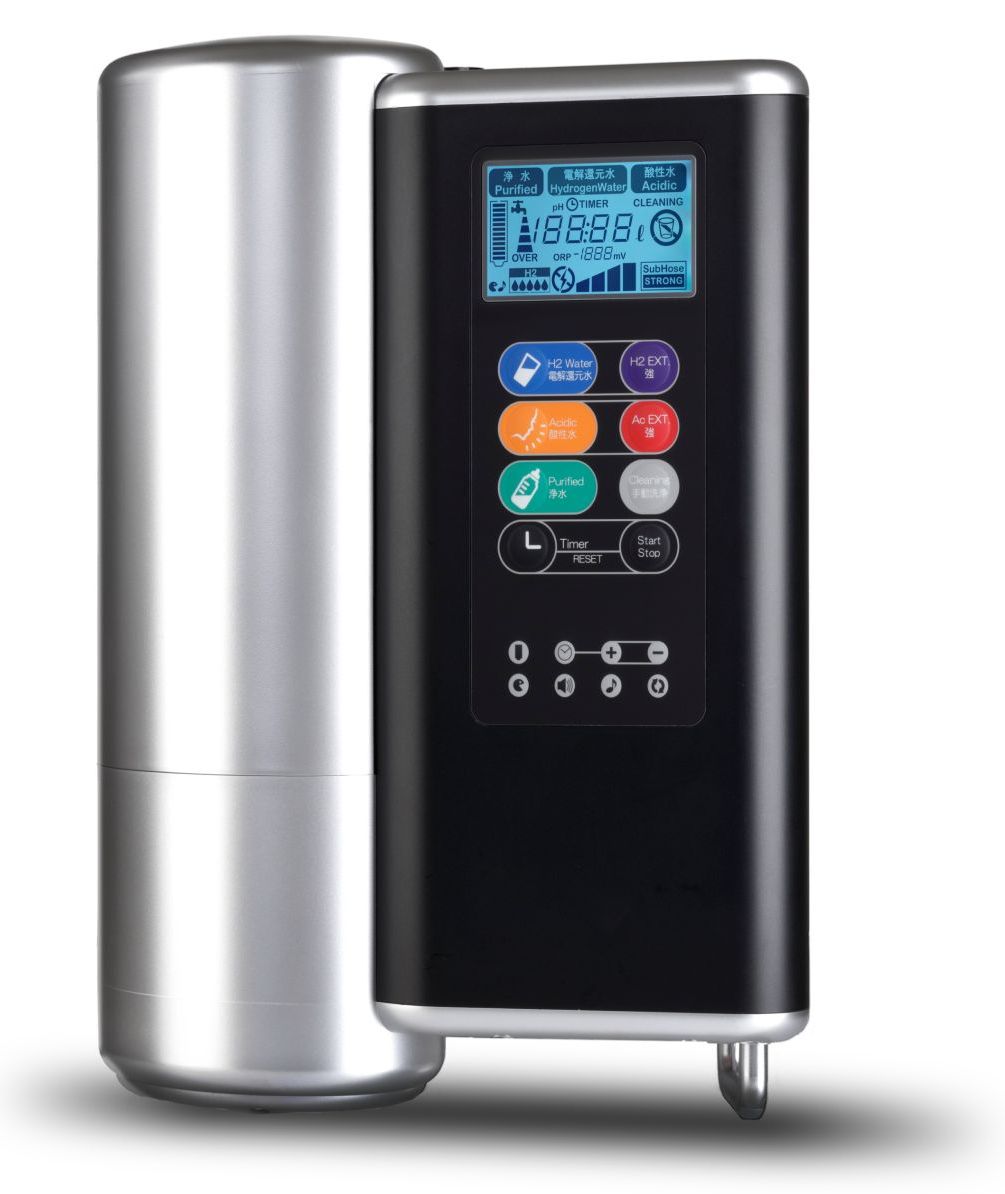

OSG Alkaline Ionizer

Generates 7 Kinds of Water: 5 Levels Alkaline, Purified, 2 Levels Acidic
Ionized Water Output Volume 1.2 L/min. at 100 kPa Water Pressure
Alkaline ionized water is safe to drink, improves gastrointestinal function, and can be used effectively for cooking.
Purified Water Output Volume 1.6 L/min.
at 100 kPa Water Pressure
Advanced Water Purification with Ultrafiltration Membrane Removes Viruses and 99.999% of Bacteria
How Is Ionized Water Generated?
First, in the same way as with a regular water purifier, residual chlorine and impurities are removed to create purified water. Then, the purified water is electrolyzed by a high-power electrolyzer featuring 7 electrodes to create alkaline ionized water and acidic ionized water. The baked platinum-coated titanium electrodes are durable and exceptionally resistant to deterioration. *Image is for illustrative purposes only.

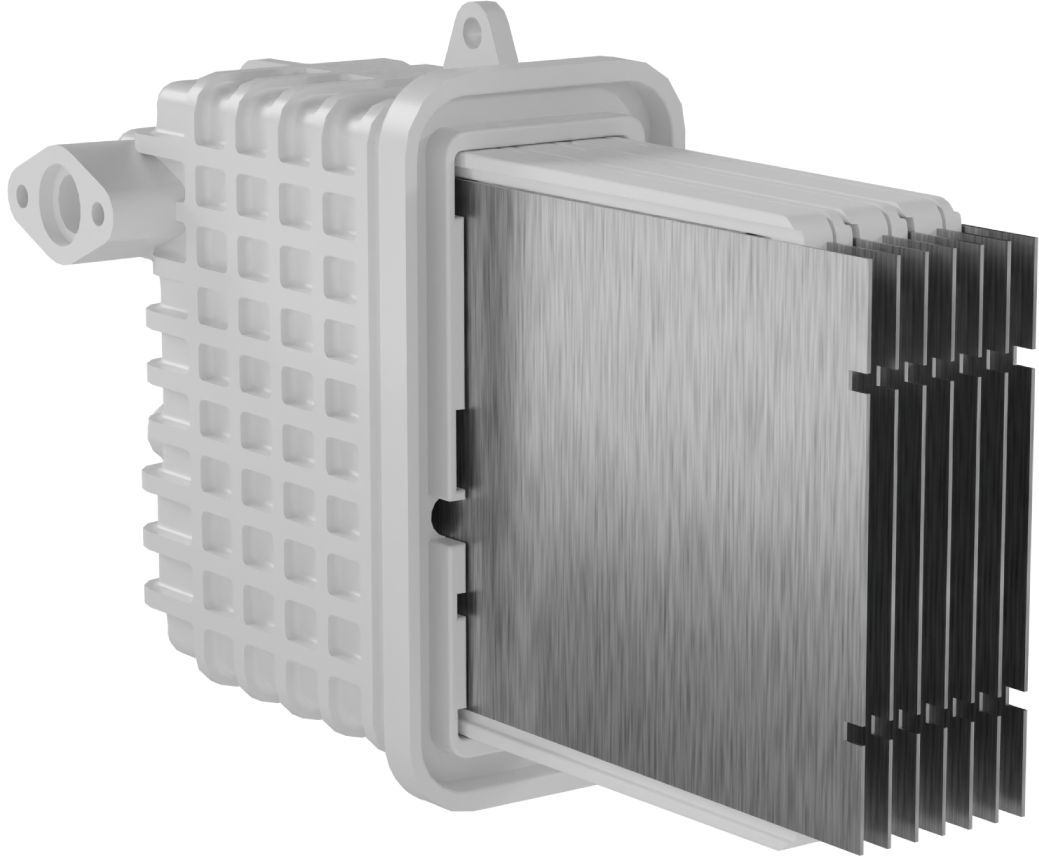

An Advanced And High-efficiency Electrolytic Tank With Japanese Patent
This electrolyser (Plates) of the HWP-55 is the core machinery of the Alkaline water ionizer. which makes it one of the most advanced alkaline water ionizer. Fujiiryoki’s Electrolytic Hydrogen water generator, Alkaline water ionizer has five electrodes. a high-efficiency electrolytic tank. By reducing the volume of wastewater
- Maintaining the industry’s best 19:1 water-saving ratio.
- Attaining high levels of dissolved hydrogen made possible.
- Auto pH Control regardless of water flow rate.
- Powerful electrolyzation by solid titanium plates with platinum fine coating

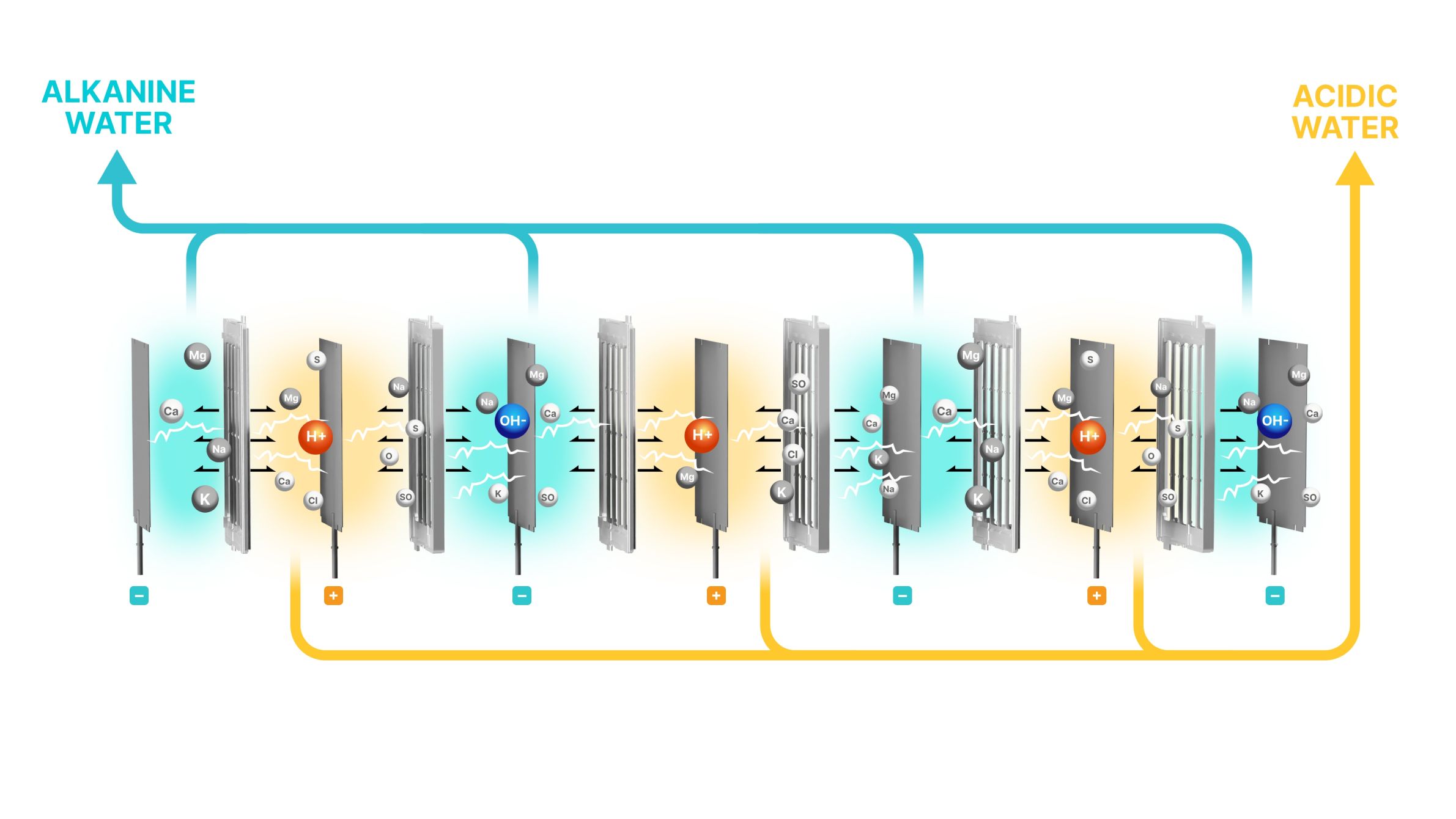

High-Performance Electrode 7 Plates

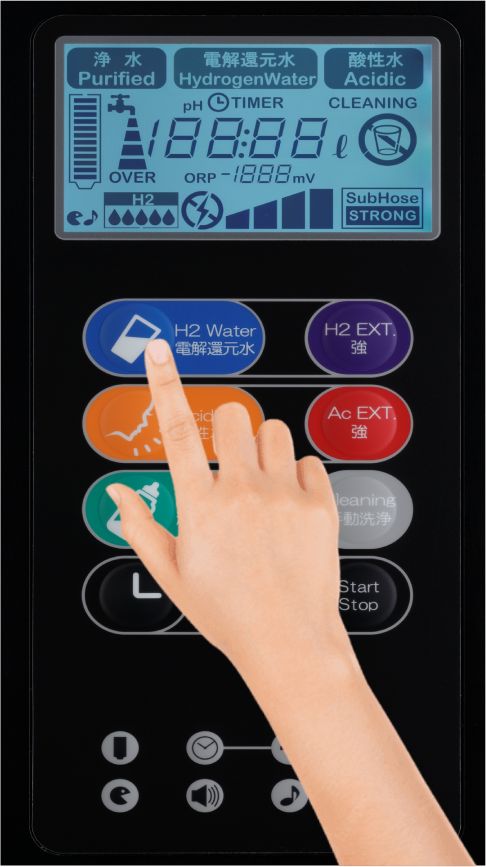

11 Types of Distinct and Selectable Waters
Just press a button to easily make ionized water with a pH ranging from about 3.0 up to 10.0.To make operation as simple as possible, LCD indications are a different color depending on the type of water, cartridge life is displayed, and you can select between an English or Chinese display.. Also, a lamp lights to inform you of remaining filter life and when replacement is required.
Avail 11 types of selectable waters by pressing the ‘H2’ button with the set pH value.
Strong alkaline hydrogen water | pH 10.5 | Hydrogen Plus |
Strong alkaline hydrogen water | pH 10.5 | |
Alkaline Hydrogen water 3: | pH 9.5 | Hydrogen Plus |
Alkaline Hydrogen water 3 | pH 9.5 | |
Alkaline Hydrogen water 2 | pH 9.0 | Hydrogen Plus |
Alkaline Hydrogen water 2 | pH 9.0 | |
Alkaline Hydrogen water 1 | pH 8.5 | Hydrogen Plus |
Alkaline Hydrogen water 1 | pH 8.5 | |
Purified water | ||
Acidic water | pH 5.5 | |
Sanitized water | pH 2.5 |

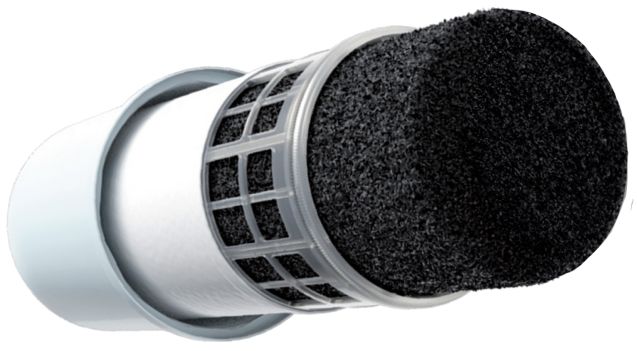

We Use NSF42 Certified
Activated Carbon
The activated carbon (APG-05TGA 60/200) manufactured by Kuraray Co., Ltd. is tested and certified by NSF International against NSF/ANSI Standard 42 for material requirements only. The micro-carbon cartridge is made from a porous carbon material with countless micropores on its interior, allowing it to quickly absorb dissolved solids while effectively removing particles that cause turbidity. With a new construction, the micro-carbon cartridge alone can now eliminate 17 substances specified in the JIS standard. Additionally, the filter material is recognized for its anti-clogging properties and exceptional flow performance.

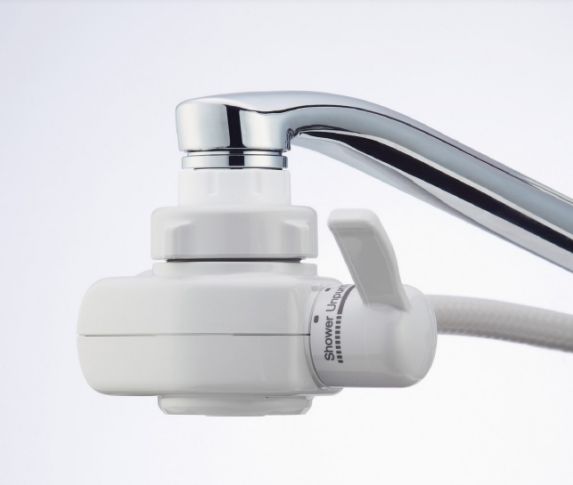

User-Friendly Water Switching Lever
The lever enables easy switching between purified water, unpurified water, and unpurified shower water.

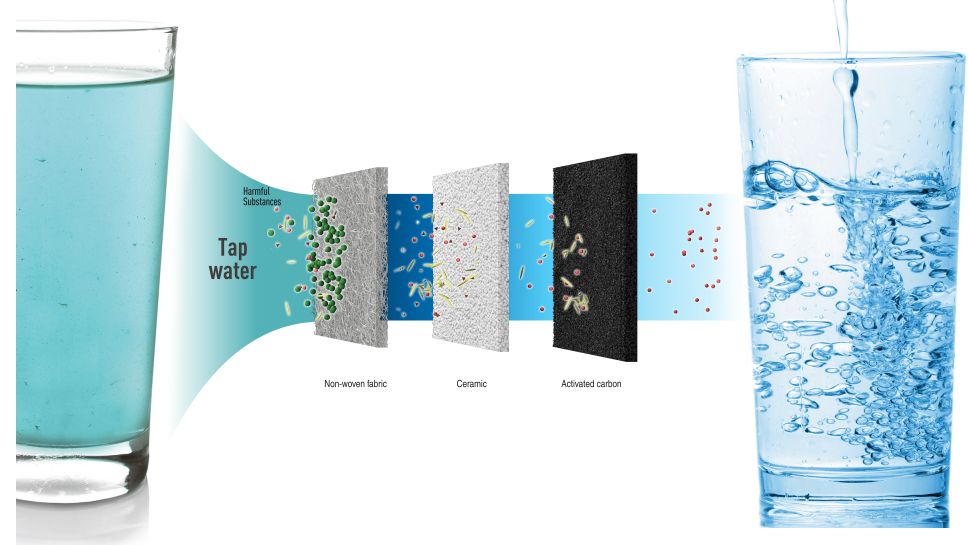

3-Stage Purification System

Specification
Product model | Alka-Rich NDX-501LM sept | |
Power supply | AC 220-240 V 0.9 A 50/60 Hz | |
Power consumption | 180 W (Maximum) About 3.6 W (during standby) | |
General name | Continuous electrolysis method | |
Main body | Dimensions | Width 335 x Depth 100 x Height 240 (mm) |
Weight | Approx. 3.6 kg (full with water) 3.2 kg (empty and dry) | |
Cartridge | Dimensions | Width 108 x Depth 89 x Height 272(mm) |
Weight | Approx. 2.0 kg (full with water) 1.2 kg (empty and dry) | |
Faucet | Dimensions | Width 60 x Depth 190 x Height 310 (mm) |
Water supply method | Open and close by Faucet handle | |
Type of electrolysis method | Continuous electrolysis method (Flow sensor installed) | |
Highest water temperature | 35°C | |
Highest water pressure | 0.5Mpa | |
Electrolysis | Water flow rate | Electrolysis hydrogen (ionized alkaline) water:3.2 L/min. Ionized acidic water: 0.8 L/min. |
Output ratio | Electrolysis hydrogen water: ionized acidic water= 4:1 | |
Electrolysis level | 6 stages= 3stages x 2 modes (fixed-current and following-rate) | |
Estimated duration in continuous use | Approx. 30 min.(standard), Approx. 10 min. (level strong at fixed current mode) | |
Electrode cleaning method | Reverse electric cleaning according to the accumulated electrolysis time(5min.) | |
Number of electrodes | 7 plates | |
Lifespan of electrolysis cell | 1,500 hours | |
Protection | Fuse on electric circuit |
Flow rate of filtration (0.1MPa) | 4.0L/min. | ||||
Applicable minimum water pressure | 0.1MPa | ||||
Purified water | Material of filter | Activated carbon, hollow fiber membrane and non-woven fabric | |||
AR501K2 (LP) | Water purification capacity Total amount of filtration | Free residual chlorine | 12,000L | Turbidity | 12,000L |
2-MIB (mildew odor) | 12,000L | ||||
Recommendable span of replacement filter cartridge Remark 2 | Approx. 12 months (subject to Free residual chlorine base and 33L per day) (Time for replacement depends on removal substances. Estimated replacement time may be shorten depends on amount of water used, water quality and temperature.) |
Remark 1: Value obtained at removal rate of 80%, under Household water purification test, method (JIS S 3201).
As for Turbidity, the value is based on 50% of an amount of water filtered.
Remark 2: To maintain best performance of main unit, it is recommended to replace the cartridge at least once a year.
Electrolysis level | 3 stages(Excluding purified water) • Level Low: pH8.0 ~ pH8.5 • Level Middle: pH8.5 ~ pH9.0 • Level High: pH9.0 ~ pH9.5*The above pH value is a guide and will change depending on the influence of water quality. *By switching the mode (fixed-current),it will be all 6 stages. |
Acidic water(Not drinkable) | Estimated pH: pH4.5~pH6.5 Please use for face washing and cleaning kicthen,wares. |
