OSG Alkaline Ionizer – Unersink

Generates 5 Kinds of Water: 3 Levels Alkaline, Purified, 1 Level Weak Acidic
Under Sink Type: Can Be Installed Stylishly in Your Kitchen.
Faucet: Mounting hole diameter 35-38 mm, Dimensions (turning radius x height)
171 x 310 mm
Alkaline Ionized Water is safe to drink, improves gastrointestinal function, and can be used effectively for cooking.
High Performance 4-stage Filtration Removes 99.999% of Bacteria and Harmful Substances: JIS 13 + JWPA 4 Substances

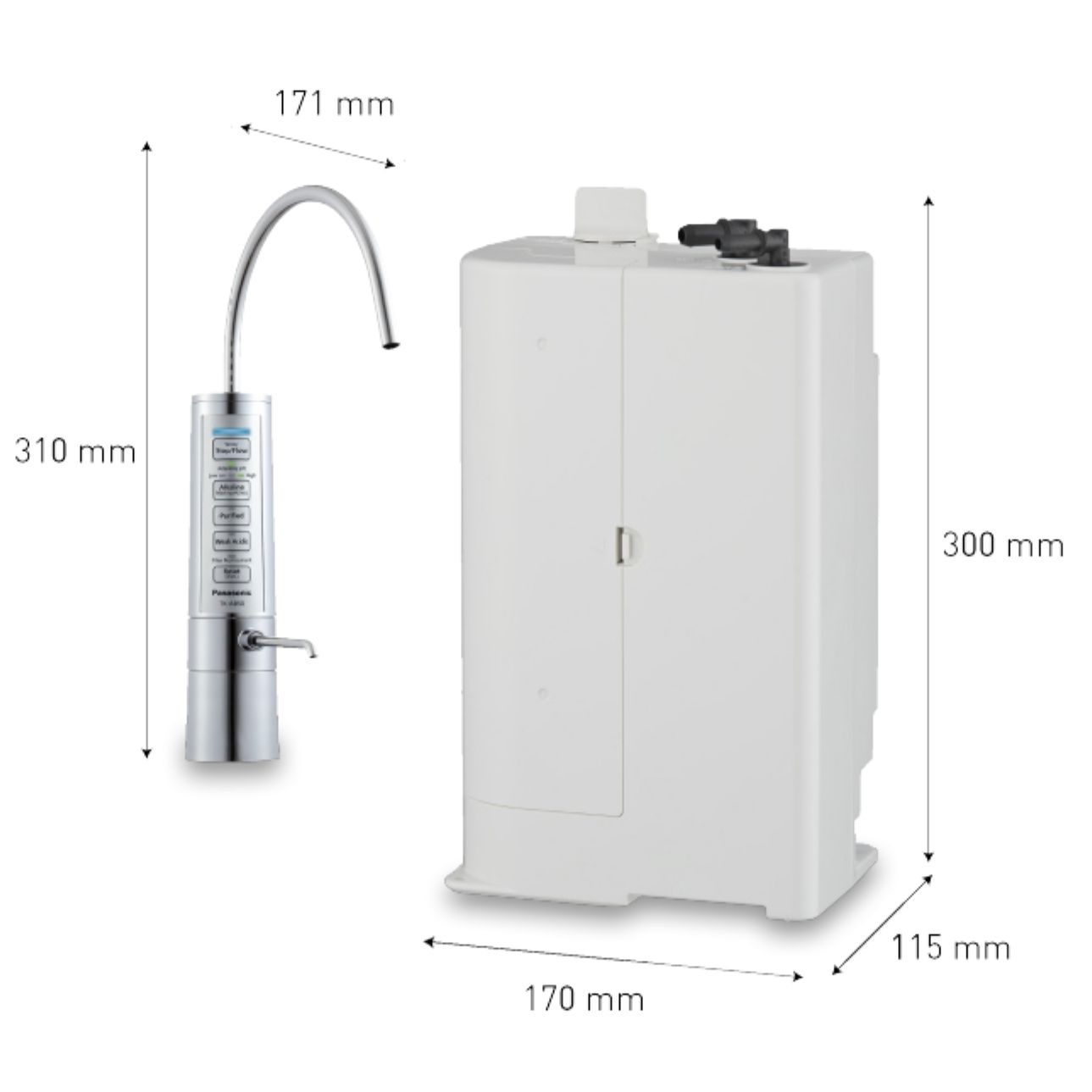

Main Unit: Height 300 mm, Width 170 mm, Depth 115 mm, Weight approx. 2.4 kg (approx. 2.9 kg when full of water)

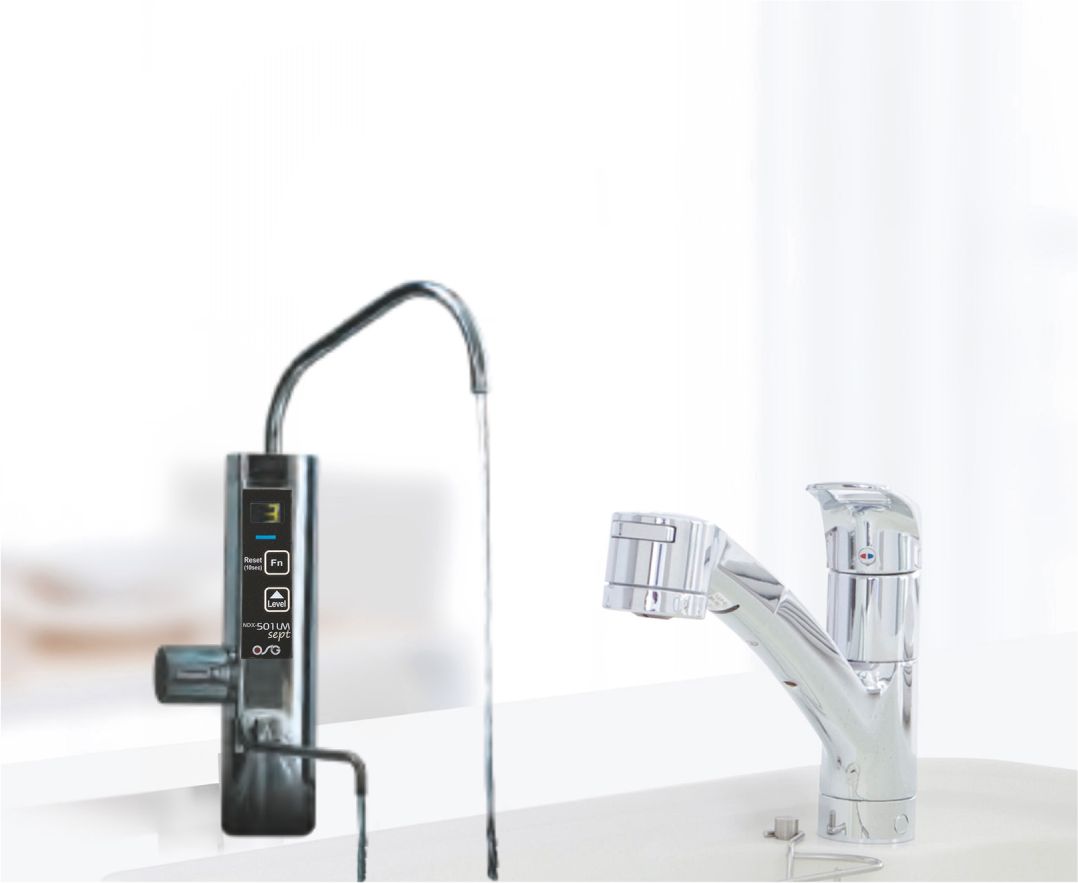

Compact, Highly Functional Design
Featuring a special spout that’s mounted on the counter around the sink and a main unit installed under the sink, the under sink type adds a stylish touch to your kitchen. The special spout lets you select the kind of water you want generated, and control water flow.

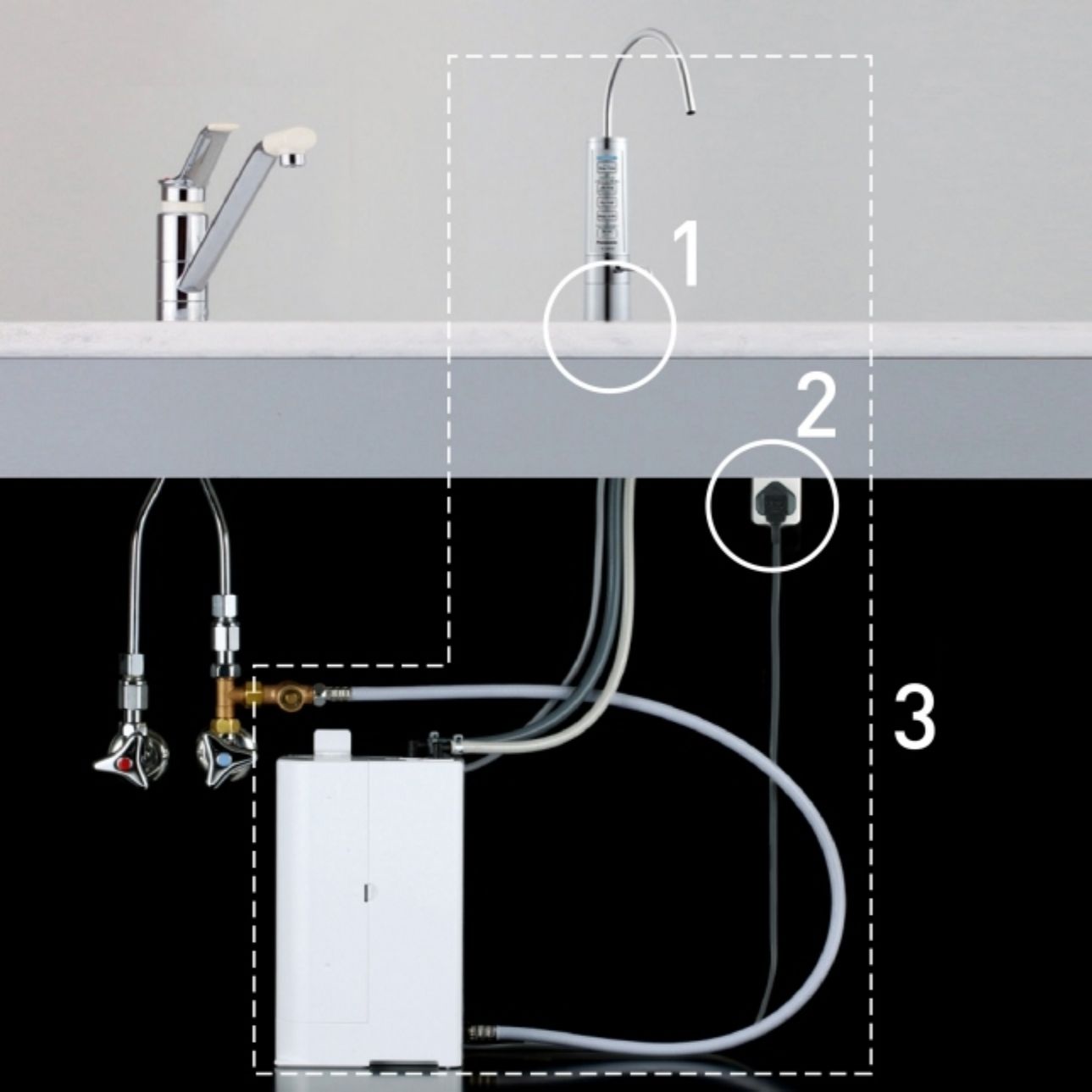

The Main Unit Under Sink Does Not Occupy the Kitchen
Installation work is necessary before use.
- Requires making a hole of 35 to 38 mm in diameter, and a 220 to 240 V power supply
- 220 – 240 V power supply
- Parts included with the TK-AB50 (wall socket is not included)
Note: Please consult with the store before purchasing.
*Image is for illustrative purposes only.
*Actual product may vary in appearance and specifications.

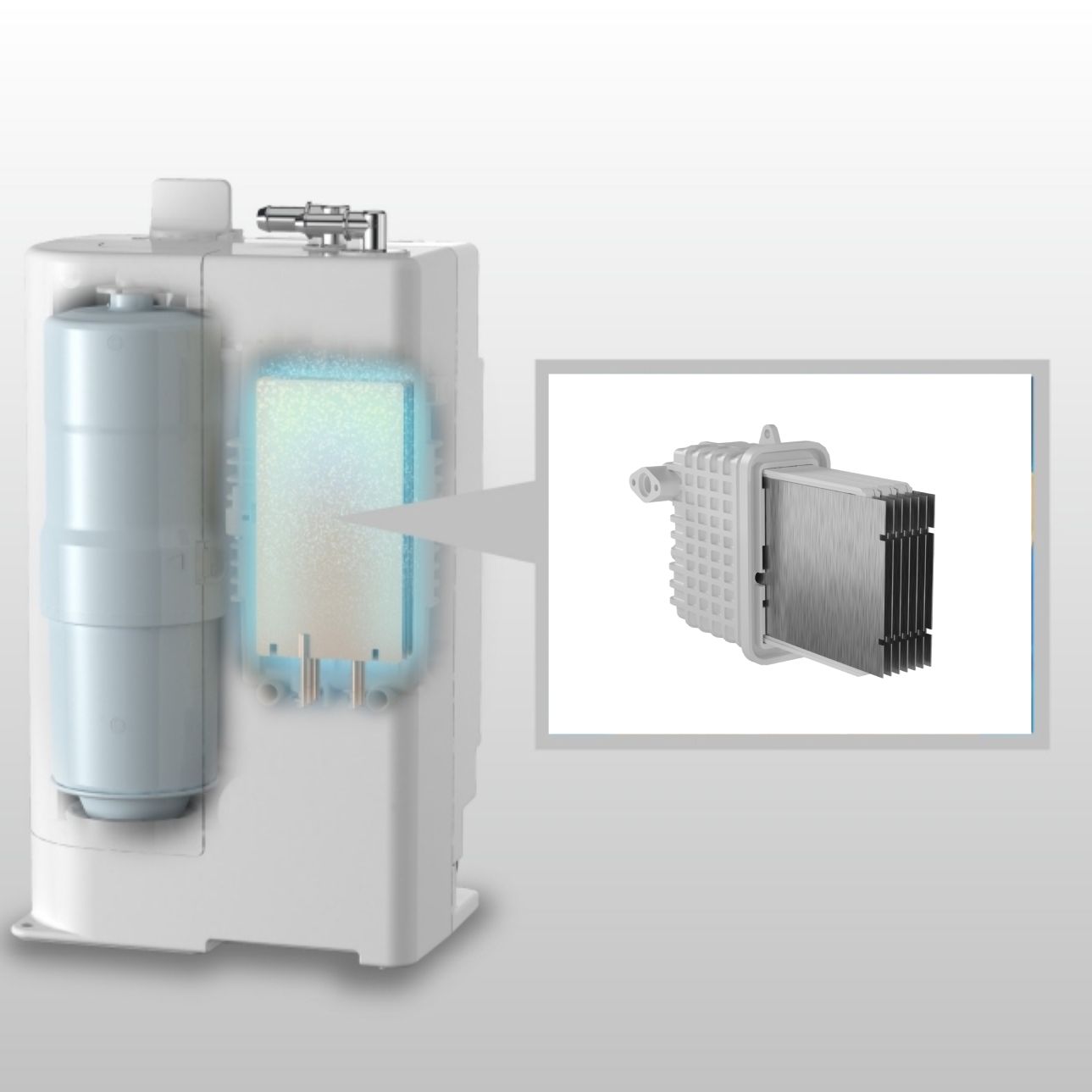

Sufficient Flow of Multi-functional Water
The main unit features a built-in water purification cartridge and five electrodes for the generation of plenty of alkaline water, weakly acidic water, and purified water.

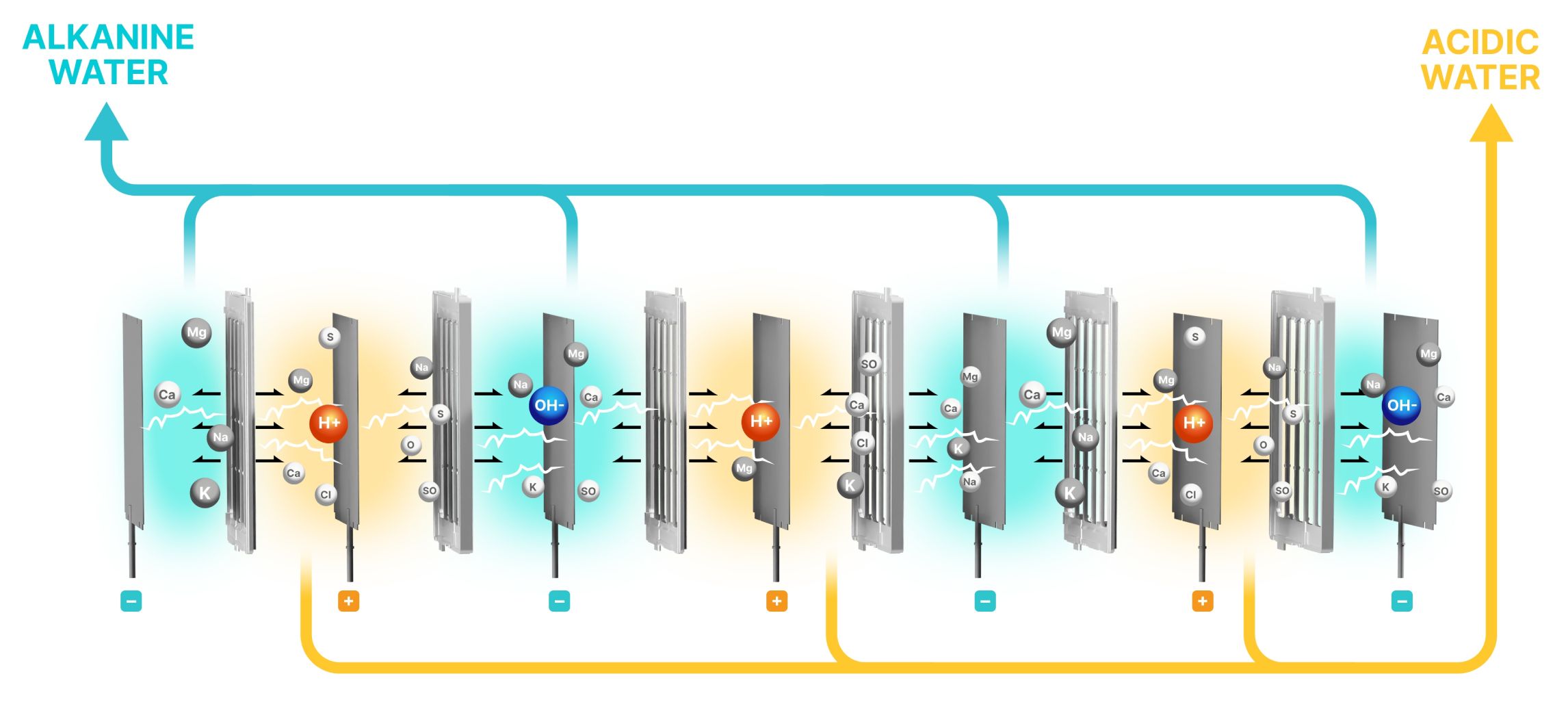

An Advanced and High-efficiency Electrolytic Tank – With Japanese Patent
This electrolyser (Plates) of the HWP-55 is the core machinery of the Alkaline water ionizer. which makes it one of the most advanced alkaline water ionizer. Fujiiryoki’s Electrolytic Hydrogen water generator, Alkaline water ionizer has five electrodes. A high-efficiency electrolytic tank. By reducing the volume of wastewater.
- Maintaining the industry’s best 19:1 water-saving ratio.
- Attaining high levels of dissolved hydrogen made possible.
- Auto pH Control regardless of water flow rate.
- Powerful electrolyzation by solid titanium plates with platinum fine coating.

High-Performance Electrode 7 Plates

Touch the center of the screen to view all 3 options.
Select the desired function and turn the left handle on the faucet, this will begin to dispense the filtered water

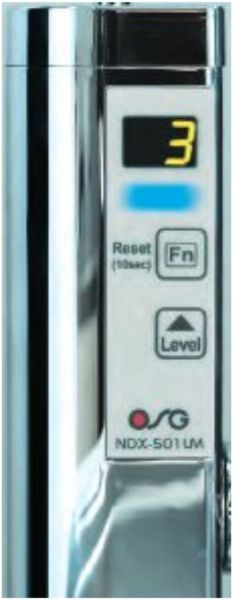

Selecting Antioxidant Water Touch the word (Antioxidant Water) to view the three antioxidant water levels. You can adjust these levels based on your usage. When melody begins, antioxidant water is ready to be served.
Selecting Purified Water After the water runs for 2 or 3 seconds, you can get purified water
Selecting Acid Water When the beeping sound starts, acidic water will be dispensed.

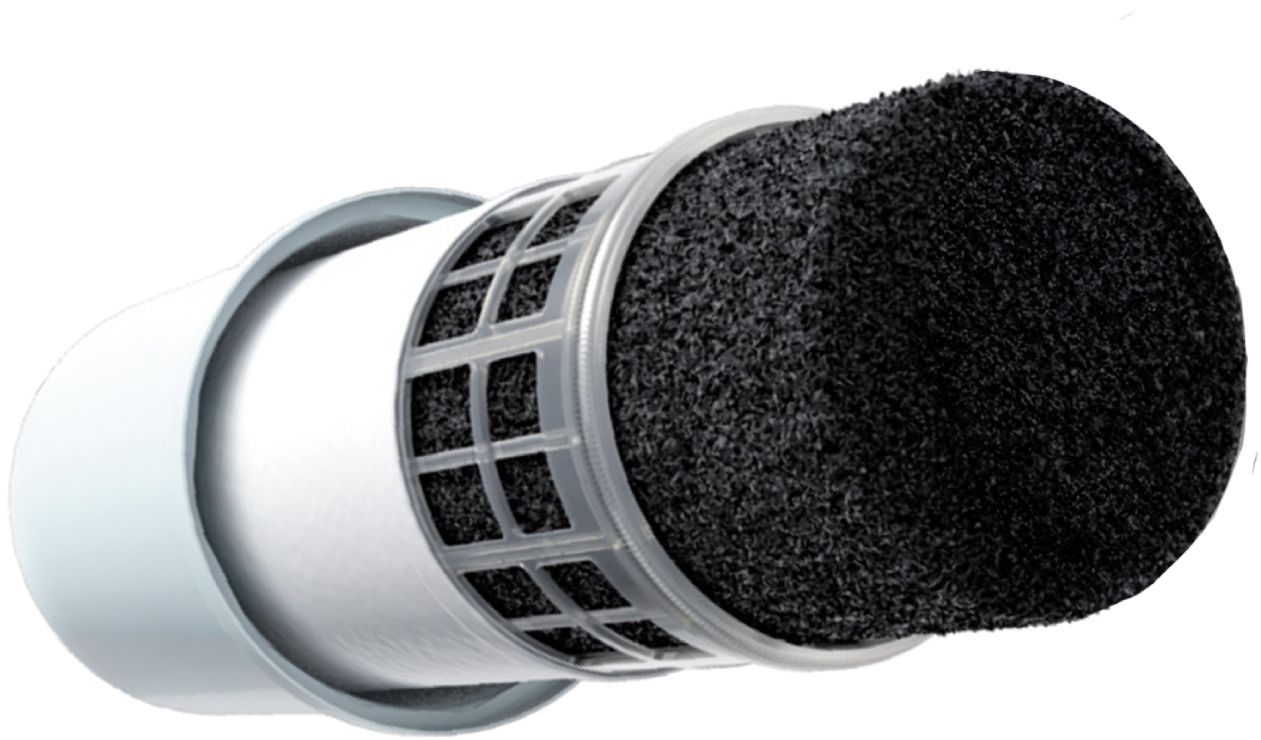

We Use NSF42 Certified Activated Carbon
The activated carbon (APG-05TGA 60/200) manufactured by Kuraray Co., Ltd. is tested and certified by NSF International against NSF/ANSI Standard 42 for material requirements only. The micro-carbon cartridge is made from a porous carbon material with countless micropores on its interior, allowing it to quickly absorb dissolved solids while effectively removing particles that cause turbidity. With a new construction, the micro-carbon cartridge alone can now eliminate 17 substances specified in the JIS standard. Additionally, the filter material is recognized for its anti-clogging properties
and exceptional flow performance.

3-Stage Purification System

Specification
Water supply Method | Switching lock faucet spout hose connection 2 WAY(U-turn) method |
Installation Method | Deferment (optional: wall decoration) |
Power Supply | AC220-240V 50~60Hz |
Power Consumption | 210W (stand-by power consumption is 0.7W) |
Dimensions of base machine | Width:255×Depth:130×Height:335(mm) |
Body weight | 6kg (8kg for full water) |
Usable water temperature | 40 or less (60 or less for switch cock) |
Usable water pressure (dynamic water pressure) | 0.1~0.5Mpa |
Electrolysis Method | Continuous electrolysis method Built-in flow sensor |
Number of electrodes | Platinum coated titanium electrode 7 sheets |
Audio Guide | Supports 4 languages (Japanese, English, Chinese, Cantonese) |
Liquid crystal display | 7-color backlight, pH, ORP, hydrogen level, water flow, cartridge replacement guide, timer, clock |
Water discharge ratio amount (Generated water flow rate) | (Ratio/ Primary: Secondary) 8:2 (Amount/Min) Primary is 2.4L・ Secondary is 0.6L(Dynamic water pressure 0.1Mpa) |
Electrolysis capacity switching | 8 stages (electrolyzed hydrogen water: 5 stages, acidic water: 2 stages, purified water) |
Continuous usable time | Normal mode 10min, Strong mode 5min |
Electrolytic cell usage limit time | Electrolysis 1000 hours (when adjusting the electrode plate life and the hydrogen water pH 9.5) |
Electrode cleaning | Auto cleaning method (cleaning time 30 seconds) and manual (optional 60 seconds with guide) |
Electrolytic auxiliary | Calcium addition, forced dissolution type addition method, built-in addition cylinder |
Model number of water purification cartridge | LF-C1A |
Flow rate of filtration | 3.0L/Min (for 0.1Mpa) |
Type of filter medium | Antibacterial activated carbon molded with silver-impregnated, Non-woven fabric |
Water purification Capability | 12,000L (80% removal rate by JIS S 3201 test) |
Filter replacement | 365 Days (If 30L be used per day) |
Filter display | Notification by display / voice when less than 11,000L water flow and when 12,000L water flow |
Length of power cord | 2 Meter |
Body protective equipment function | Current fuse: 3.15A, power overheat auto-off, overpower auto-off |
